Smoke, Mirrors & MegaPointes for Bon Iver Tour

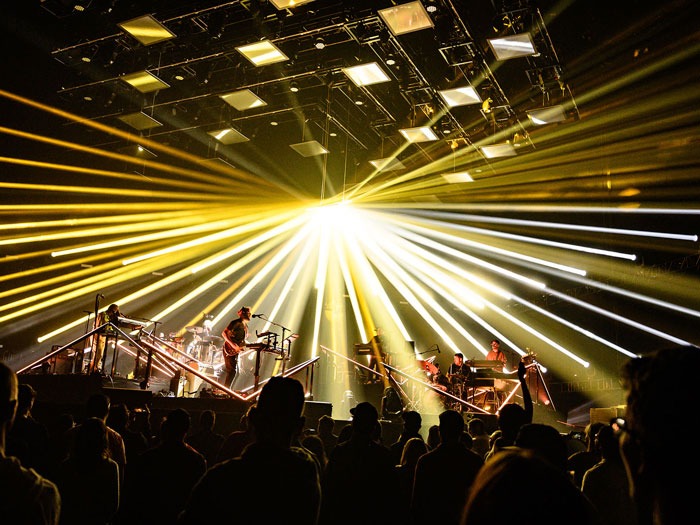

Photo Credit: Graham Tolbert

Lighting designer, Michael Brown used 49 Robe MegaPointes and 25 Kinetic Lights custom moving mirrors for the US leg of Bon Iver’s recent tour.

Brown first encountered the Kinetic Lights winch system in 2017 while researching cool art projects for the Eaux Claires Festival in Wisconsin for which he was the creative director/ visual arts curator for all four years – 2015 to 2018 – that the event has run so far.

Bon Iver’s Justin Vernon and Aaron Dessner from The National are the main curators – for music and all aspects – of the entire festival.

Brown reached out to WHITEVoid’s Christopher Bauder, a light artist based in Berlin, who invented the winch system and a very elegant and precise bespoke control for the moving mirrors. He was keen to work with Bauder on some sort of collaboration. At the time, a specific project didn’t materialise, but the two started communicating and expressed a strong creative connection and the desire to work together.

Fast-forward three years, and Bauder has refined and further developed the winch system and created several large-scale spectacular light art installations and shows worldwide using the mirrors, the best known is SKALAR, which utilises 90 Robe Pointes and was most recently presented in Mexico City at the end of 2019 and at SKALAR 360 Amsterdam Jan/Feb 2020.

In late 2018, Bon Iver made a big decision to play arenas during the upcoming year. The show and the production design had to help retain the intimacy of smaller spaces that everyone loves and the huge connection Bon Iver has with their fans, yet also be visually and sonically provocative, interesting and assist in heightening all the raw emotional responses at the very essence of the music.

So, when Brown revisited the Kinetic Lights mirror ideas and the kit in 2019, everything was different. Bauder and WHITEvoid – the company presenting the project side of his work – had a lot more experience of utilising the kit, and both Vernon and Bon Iver’s production manager James Dean were also onboard. Most importantly, Brown had a plan for converting what would likely be an 8-day get in window for an art installation scenario into a 4-hour one.

Bauder connected them with WHITEvoid’s representatives in Las Vegas – Peter Thompson and Liz Roncato – and the production design started to energise.

Before he approached Bauder this time around, Brown had the design and layout of the winches and MegaPointes all worked out, some of it inspired by SKALAR combined with several original ideas for how it would work uniquely with Bon Iver.

The 3D geometry that defined the band’s touring lighting rig was created by five identical overhead chevron trusses comprising 32ft long wings connected by a 90-degree corner block, which resembled a diamond from the audience perspective and mirrored a diamond-shaped layout of the band risers onstage down below with no one on the central plane.

The 25 custom diamond-shaped Kinetic Lights LED-outlined mirrors, each suspended on three of their proprietary winches, flew below the chevrons – in five vertical rows of five able to move up/down/pan/tilt in any direction, controlled by their own KLC control software developed especially for this purpose.

Then there were two grids of MegaPointes at the core of the rig.

A row of 21 fixtures formed a U-shape around the winches with another 21 echoing the same positions on the floor and all these fixtures were mapped onto the mirrors.

The combination of the MegaPointes and the mirrors looked fantastic as a piece of engineering, and during the show, they bent and refracted light creating numerous looks, aberrations and optical magic from the structural and architectural to the abstracted. Using the light in this way brought a completely different quality and texture to lighting the stage. The other seven MegaPointes were on the floor aligned directly below certain mirrors.

All the flown elements were sub-hung from a mother-grid installed into the arenas to ensure millimetre precision for each gig.

Although Pointes and MegaPointes have been used as the default fixture in various WHITEvoid installations, MegaPointes are also Nashville-based Brown’s moving beam/ the multi-functional light fixture of choice right now – for the brightness, the smooth CMY colour mixing, the overall versatility as well as the reliability.

The combination of mirrors and MegaPointe beams has set the tour apart visually and delivered something that is properly new, different and innovative.

Brown has been using Robe products in his work for around 10 years, starting when the LEDWash 600 was launched, and he thinks that Robe has produced a steady and consistent stream of good products over that time.

“MegaPointes are the cream of the crop for bold, beam FX lights,” he stated. In this concert scenario, he specifically wanted the extra punch of MegaPointes to cut through all the various other layers of lighting in the design. The live show is very different from a perfectly balanced art installation situation with no other lighting.

Lighting – for the MegaPointes plus a number of other moving lights and LED battens and strips – was controlled via a grandMA2 console which was also triggering the KLC computer for the winch movements.

Lighting equipment, all the associated rigging and the set risers were supplied out of the rental specialist Clearwing’s Milwaukee shop, with the mirrors and winches a rental from Kinetic Lights in Germany.

Brown’s foresight and everyone’s hard work in assisting him to get this show on the road especially his Clearwing crew chief and systems designer Sam McKeown who made sure that everything would work practically and logistically on the road – has certainly paid off. The tour got many people noticing, chatting, and sharing positive comments and generated a huge buzz around the production and music industries – from managers and artists to crews, techs, and designers.

Bauder and Kinetic Lights / WHITEvoid and the international team at Robe have also been intrigued to see this evolution of their own partnership – the first time Kinetic Lights mirrors/winches have been on the road in the U.S. for a concert tour and used in a live band context like this!
