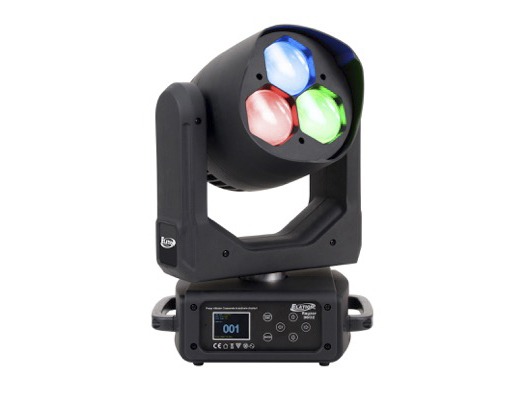

Elation Compact Rayzor 360Z – A High-Speed LED Beam / Wash Luminaire with Zoom

Elation Professional has announced the launch of a new beam / wash moving head in its Rayzor Series of compact and high-speed LED luminaires, the Rayzor 360Z. The Rayzor 360Z houses three 60W RGBW LEDs for a powerful thrust of light and includes a 5° to 50° motorised zoom for the versatility of narrow to wide beam angle spreads. Lighting professionals will be able to get an up-close look at the speedy Rayzor 360Z at Elation Booth 2515 at the upcoming LDI show in Las Vegas.

The Rayzor 360Z offers surprising brightness for its size (20,550 Lux at 3m with 5° zoom) and with fast and precise 16-bit continuous 360° pan and tilt rotation it can add an energising look to any show.

Also useful as an effective wash light, colour temperature is variable from 2,700K – 8,000K and colours mix uniform from vibrant saturates across beautiful pastels to authentic warm and cool shades of white. And for programming convenience, a variety of colour macros are included.

The Rayzor 360Z offers a full complement of other professional features, including electronic strobe and 0 – 100% dimming with selectable dimming curve effects. The fixture allows for individual pixel control, which opens up for custom designs or users can turn to the convenience of built-in macros. Refresh rate frequency and Gamma brightness are also adjustable.

The fixture is controllable via multiple DMX channel modes, includes ArtNet and KlingNet protocol support and is RDM ready (remote device management). Multiple unit power linking makes for quick installation and customisable setups.

The Rayzor 360Z features a full colour 180° reversible LCD menu display with a seven-button touch control panel. Professional grade five-pin XLR DMX in / out, RJ45 etherCON and Powercon True1 in / out connections are included. The fixture operates flicker free for use in TV and other broadcast applications and an auto-sensing power supply covers worldwide voltages and frequencies.

The Rayzor 360Z offers all the benefits of LED like greater reliability, less maintenance and increased energy efficiency for a lower cost of ownership and its long life rated LEDs will rarely if ever need replacing.
