The unwavering importance of discharge lamps

If LED is king, then why do we still need discharge lamps?

With benefits like greater reliability, increased energy efficiency and less maintenance for a lower cost of ownership, the transition from discharge lamp-based lighting fixtures to LED sources in the entertainment lighting industry was understandable if not inevitable. Then, as LED engines began to compete with discharge-based fixtures in terms of brightness, the writing seemed to be on the wall – it was surely only a matter of time before discharge-based lights would disappear from use completely.

However, that hasn’t been the case. So, why are manufacturers still launching lighting products with discharge sources? “It’s really about what you want to accomplish optically,” stated John Dunn, National Sales Manager at Elation Professional’s headquarter office in Los Angeles. “The physics behind an LED source don’t make sense for all types of fixtures and some effects are still not achievable with LEDs. A great example is a long-throw beam fixture. When you need that pronounced beam of a narrow beam aperture product, you just can’t duplicate the centre intensity that a lamp and reflector gives you with an LED engine.”

Roger Hamers, R&D head at Elation’s European office in the Netherlands, picked up the story: “It has to do with the construction of the lamp working with an internal reflector. The size of the lamp and reflector is key. With a discharge lamp, because it is relatively small, the focal point is very near the output of the light, which gives you a narrow, very intense beam. You could do the same with LEDs but because of each LED’s relatively low wattage, to get the same effect you would need a very large LED chip and quite a large reflector, so the fixture would be too big.”

Discharge lamps involve an internal electrical discharge between two electrodes in a gas-filled chamber, and it’s at that point that the level of intensity is extreme. It’s that power that can be harnessed, isolated and thrown out as a collimated beam of light. When producing an ultra-narrow beam with an LED source, that concentrated intensity is missing and consequently the beam lacks density and doesn’t travel as far. “It’s at distances that you really begin to notice differences,” Hamers said. “With an LED engine, you don’t have the pronounced centre intensity that you are looking for in a long throw narrow collimator beam fixture.”

Hamers explains that in the past, with a discharge lamp, a somewhat large reflector was needed because the electrical arc was relatively big. “Today though we have tiny discharge lamps with arcs of only millimetres. The Platinum lamp has a very small arc of only about 2mm. The light is concentrated in an intense beam, which lets you build a powerful light in a much smaller housing.”

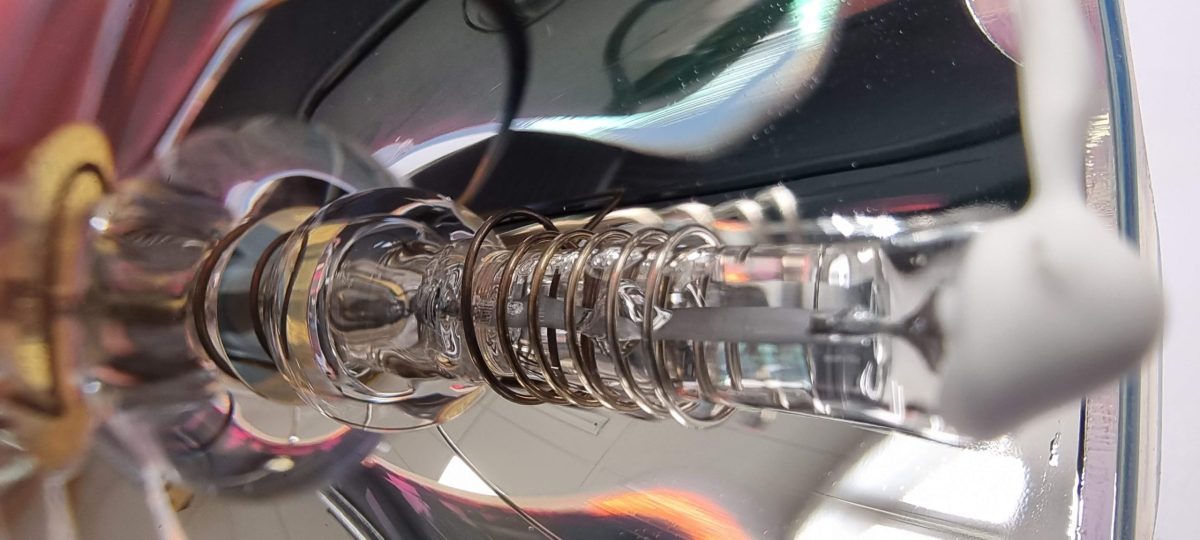

It’s that discharge lamp technology that Elation Professional has exploited so successfully, even as it developed and transitioned the majority of its product line to LED. Working with Netherlands-based Philips lighting to develop the Platinum lamp, the short-arc design opened up new possibilities for engineers. The result was a series of Platinum lamp luminaires in 2009 and culminating in the breakthrough IP65-rated Proteus Hybrid in 2017. Platinum lamp technology advanced even further with the introduction of Platinum lamp FLEX technology.

“With the Platinum FLEX lamp, basically we have packed the advantages of LED into a discharge lamp,” stated Marc Librecht, Sales & Marketing Director at Elation Europe. “Lamp life improved significantly – five times or more compared to traditional lamps – which has lowered lamp costs over the lifetime of a fixture. The discharge lamp/ballast allows it to be dimmed and set to hibernation mode when not in use. This lowers power consumption and reduces heat, which protects electronic components and reduces overall fixture maintenance. We are now reaping the advantages of both worlds with a new type of discharge lamp.”

The Platinum FLEX lamp began a revolution in savings for discharge-lamps yet its development was always about more than economics. “It’s about what you want to accomplish optically,” Dunn reiterated. “In fixtures like our beamspot Smarty series that excel at aerial effects, you want more intense narrow beam optics that can define a beam or pattern and a short-arc discharge source gives you that. It also gave us the freedom to create smaller and lighter fixtures that have as much punch as much bigger models.”

The latest fixture to benefit from the FLEX lamp technology is Elation’s Proteus Excalibur, a 0.8° beam fixture with MSD Platinum 500 FLEX lamp that launched last year. “Our goal was to create a really powerful beam moving head fixture that could replace xenon searchlights,” remarked Hamers. “We just weren’t able to create that high beam intensity at this level with an LED engine, not yet anyway.”

So, will LED ever be a feasible replacement for long throw discharge lamp-based fixtures? Haitz Law, the principle that the amount of light generated per LED package increases by a factor of 20 each decade, tells us so.

Elation’s R&D team has stayed on the forefront of the technology and has already developed products with LED engines that mimic the centre intensity of a discharge source. “We’re emulating that centre peakedness of a lamp in some of our LED products already,” concluded Dunn. “Proteus Lucius, Proteus Maximus, Artiste Mondrian, and Artiste Rembrandt all have a white LED engine designed to create that parallel collimated beam with the pronounced centre. The ratio is not as pronounced as with a discharge lamp, but they are very impressive at distances and a big step in the right direction.”

Words: Larry Beck

Photos: Elation Professional
